Filter Backwash Hydraulic Valve

Filter Backwash Hydraulic Irrigation Valve system

Filter Backwash Hydraulic Valve

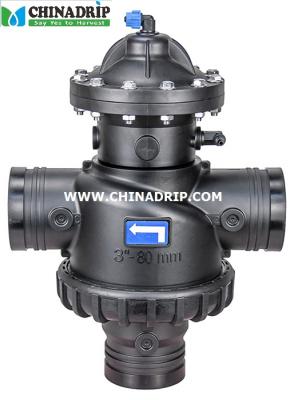

This valve is T shape 3-way hydraulic valve with double chambered, hydraulically
operated and diaphragm actuated which is suitable for various automatic
backwashing of filtration systems.


Benefit from excellent short hydraulic travel structure designed, It could change flow
direction smooth.
With two chambers structure, this valve is available in Angle fow (A) and Straight
flow (S). It can be flexibly installed in multiple orientation to adapt various filter
system





  • Item NO.:

    BHV0180A
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Product Origin:

    Xiamen, China
  • Color:

    Black
  • Lead Time:

    10 days 3000pcs
  • Shipping Port:

    Xiamen
New Products

1.which is combined by several This valve is T shape 3-way hydraulic valve with double chambered, hydraulically operated and diaphragm actuated which is suitable for various automatic backwashing of filtration systems.
2.Benefit from excellent short hydraulic travel structure designed, It could change flow direction smooth.
3.With two chambers structure, this valve is available in Angle fow (A) and Straight flow (S). It can be flexibly installed in multiple orientation to adapt various filter system.

Features:

1.Double Chambered: low actuation pressure required, extend the lifetime of the diaphragm.

2.Durable Performance: Produced by excellent engineered plastic which is of corrosion and UV resistant

3.Reliable Performance: change flow direction smoothly based on short travel hydraulic actuation design to avoid mixing of supply and waste water.
4.Easy Installation: two flow direction modes, Angle fow (A) and Straight flow (S), to fit various aotumatic filtration system.

Technical Data:

· End Connections: Grooved
· Operating Pressure: 0.7-10 Bar
· Maximum Temperature: 65°C
· External Operating Pressure: 85%-100% of operating pressure
· Control Chamber Displacment Volume: 0.13L of 2", 0.34L of 3", 0.55L of 4"


Application:Installing into multiple type automatic backwash filtration station: disk filters, sand filter, screen filters.
