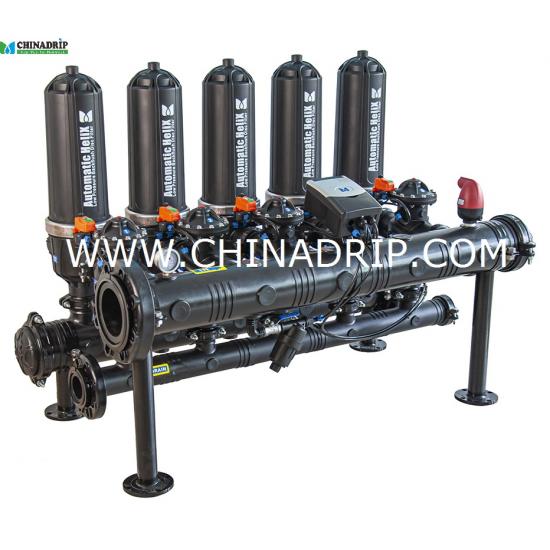

T Automatic Self-Clean Filtration System

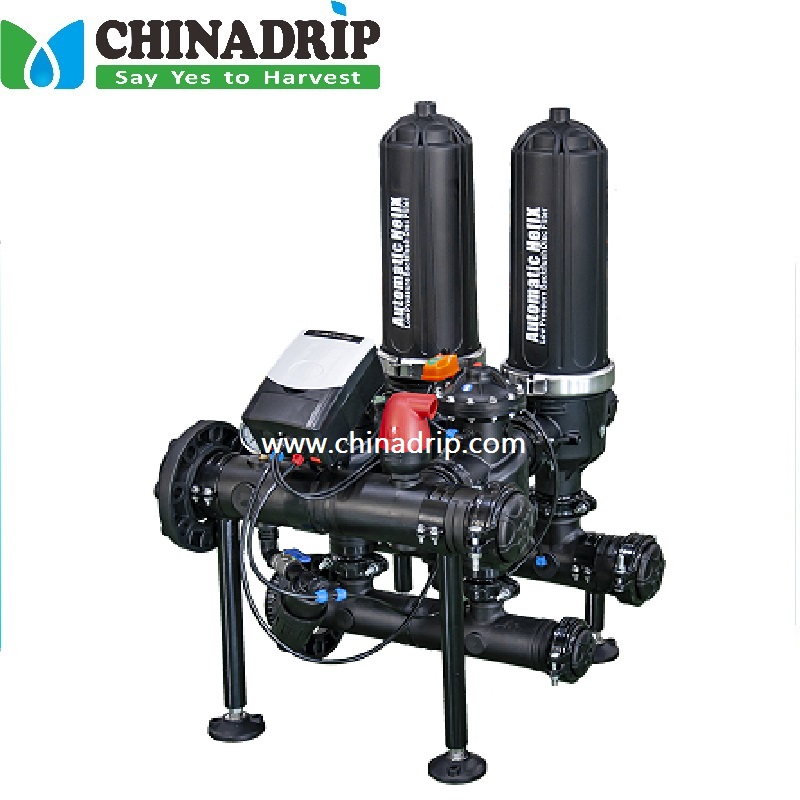

T2 Type Automatic Self--clean Filter system
Item NO.:
T30X-XOrder(MOQ):
1Payment:
T/T, L/CProduct Origin:
Xiamen, ChinaColor:
BlackLead Time:
10 days 3000pcsShipping Port:
Xiamen
Features:
1.Easy Operation: The control system is the Chinese / English interface, with simple and easy to operate.
2.Saving manual labour: Program setting automatic backwash, less manual maintenance requirement.
3.Saving Water and Energy: Maximum filtration efficiency based on mimimum backfulshing pressure reuqired.
4.Reliable and durable: Produced by excellent raw material which is of corrosion, chemical and UV resistant.
Technical Data:
Technology:

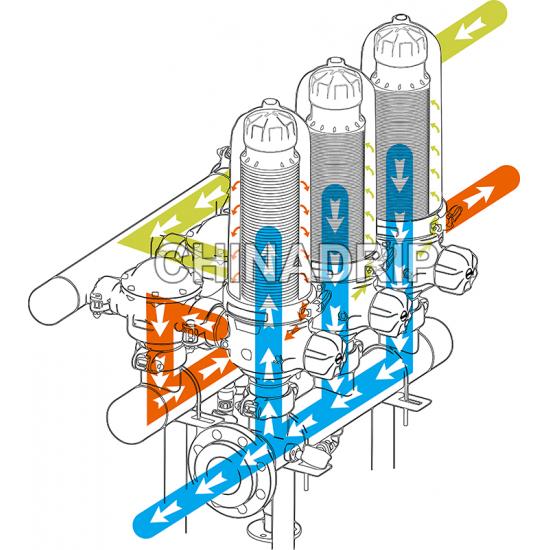

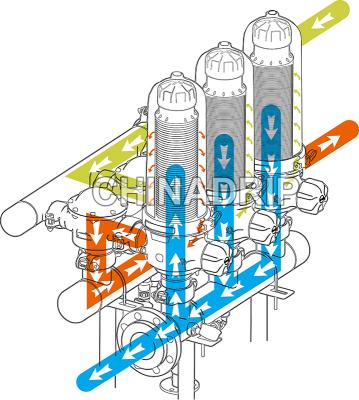

Filtration Process: The controller controls the direction of the backwash valve to make the filter enter the filteration stage: The source water enters the filter passing through the system inlet pipe, backwash valve, and filter inlet one after another. Then the dirts stopped by disc and clean water pass through filter outlet to system outlet pipe.
Backflush Process: After the controller detects that the pressure difference between the inlet and outlet is greater than setted value, it controls the backwash valve to change direction, so that the filter enters the flushing stage: The clean water filtered by other filters passes through the system outlet pipe to the filter outlet and flushing the discs, then the dirty water passes through the filter inlet, the backwash valve and discharged to the system sewage pipe.
Dimension:
