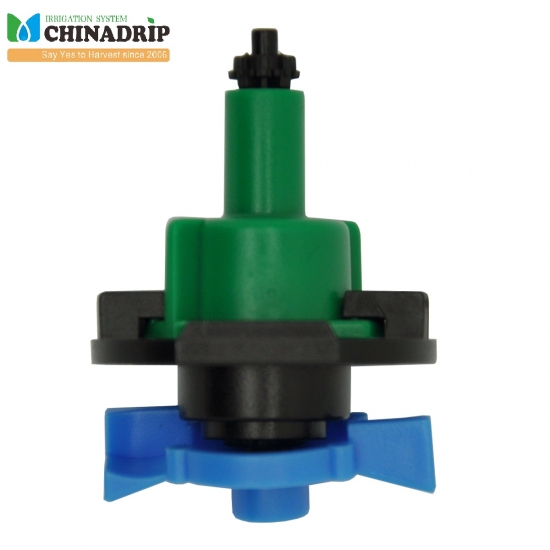

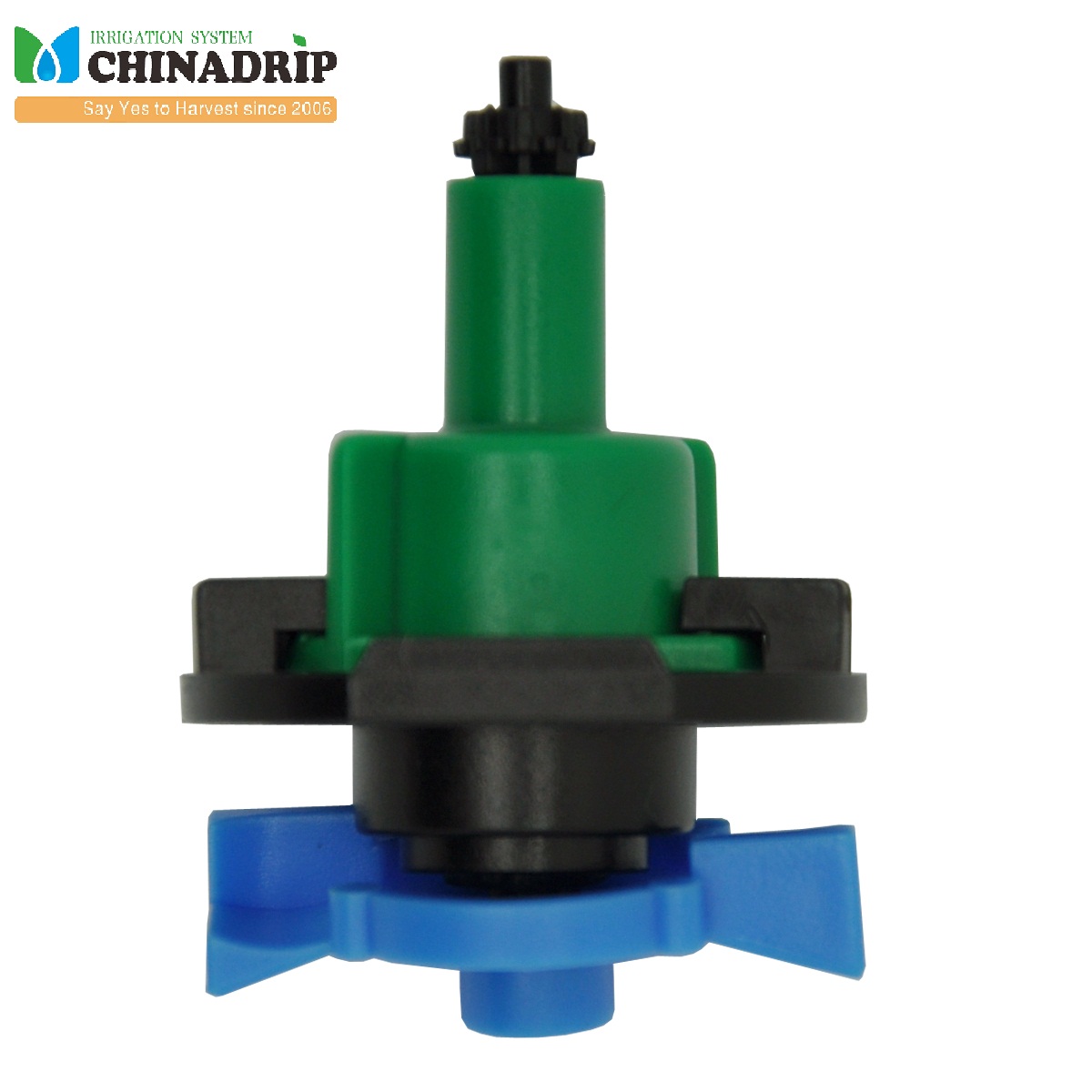

360º No Bridge Mini Sprinklers (Upside Down Type)
360º No Bridge Mini Sprinklers
  • color: Green
  • product origin : Xiamen, China
  • payment : T/T, L/C
  • shipping port : Xiamen
  • lead time : 5 days for 50000pcs
  • brand: chinadrip
  • item no.: MS8030/ MS8050/ MS80
product details

360º No Bridge Mini Sprinklers (Upside Down Type)

These sprinkler are the most advanced with unique mechanism, special construction without a bridge for even distribution and excellent performance even in difficult conditions.


Advantage

* Unique with strong propulsion-Smooth operation even in bad conditions.

*  Firm construction without a bridge-Uniform water distribution.

*  Anti-insect design, Swivel seals the nozzle once the water is shut off.

*  Integral nozzle filter, Protects the nozzle from debris in the water.

* Special engineering raw materials for long life and durability.

*  Large drops for added wind resistance.

 Technical Data

*  Wide range of nozzles to meet all applications

* Wetting diameter:5.5-9.0m (18-30 Ft)

*  34L/h, 49L/h, 66L/h and 80L/h @ 2bar

*  Recommended Filtration:

*  Up-right type and upside down position to meet different requirement.

*  100 mesh for flow rates up to 50L/h.

*  80 mesh for flow rates up to 70L/h.

*  Working pressure maximum range: 1.0-3.0 bar (14.5-43.5psi). 80 mesh for flow rates up to 70L/h.

*  Optimal working pressure range: 1.0-2.0 bar(14.5-32psi).
